3M™ Particulate Filter 2138, P2/P3, with Nuisance Level Organic Vapor Relief, 100 EA/Case
- 3M ID 7000029914
Details
Highlights
- Made from 3M high performance filter media for effective filtration efficiency
- Lightweight and provides low breathing resistance
- Suitable for use with 3M™ 6000/7500 Series Half Face Respirators and 3M™ 6000/7000 Series Full Face Respirators
- Suitable for use with 3M™ Half Face Respirators 6000 / 6500QL / 7500 Series and 3M™ Full Face Respirators 6000 Series
Provides protection against: Particulates (P2/P3*), Ozone and Nuisance Level** Acid Gas & Organic Vapours with Low Vapour Pressure. * Higher P3 protection factors only achieved with a 3M Full Face Respirator, otherwise P2 protection level when worn on a 3M Half Face Respirator. **Nuisance Levels are those levels below the Workplace Exposure Standard (WES).
Note that any filtering respirator should not be used for protection at airborne concentrations of contaminants above the relevant Immediately Dangerous to Life or Health (IDLH) levels.
This cartridge/filter, when used for protection against the contaminants as specified, is capable of providing the following protection levels:
- With a 3M 6000/7500 Series Half Face Respirator: for particles, for airborne concentrations up to 10 times the Workplace Exposure Standard (WES)
- With a 3M 6000/7800 Series Full Face Respirator: for particles, for airborne concentrations up to 100 x WES
- Organic compounds with low vapour pressures (<1.3Pa @ 25 degrees Celsius) in concentrations up to 10 x WES
- Ozone up to 10 x WES
- Offers relief from acid gases and organic vapours at levels below the WES
Common Applications/Hazards:
Suggested applications
- Common Applications/Hazards: For protection against toxic particles such as mould remediation. Also for nuisance level* acid gases and organic vapours with low vapour pressure <1.3 Pa @ 25°C
Typical Properties
| Aerosol Type | Oil & Non-oil |
| Brands | 3M™ |
| Cartridge or Filter Assigned Colour Coding | N/A |
| Cartridge or Filter Rating | GP2/GP3 |
| Cartridge or Filter Type | Particulate |
| Connection Type | Bayonet |
| Filter Class | P3 R |
| Filter Type | Gas, Vapor & Particulate Filter |
| Nuisance Odor Relief | Organic Vapor & Acid Gas |
| Product Series | 2000 Series |
| Product Type | Particulate Filter |
| Respirator Compatibility | 3M™ Full Facepiece 6000 Series, 3M™ Half Facepiece 6000 Series, 3M™ Half Facepiece 6500QL Series, 3M™ Half Facepiece 7500 Series |
| Specifications Met | Complies with AS/NZS 1716:2012 |
Resources

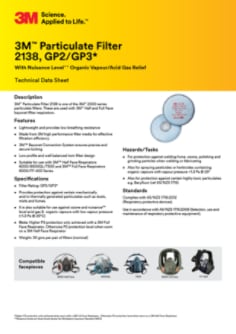

3M Particulate Filters 2138 DatasheetData Sheets
(PDF, 720KB)
