  6. 3M™ Cold Shrink Mine and Portable Splice Kit 8043-1, Max. Cable O.D. 1.80 in, 1/Case

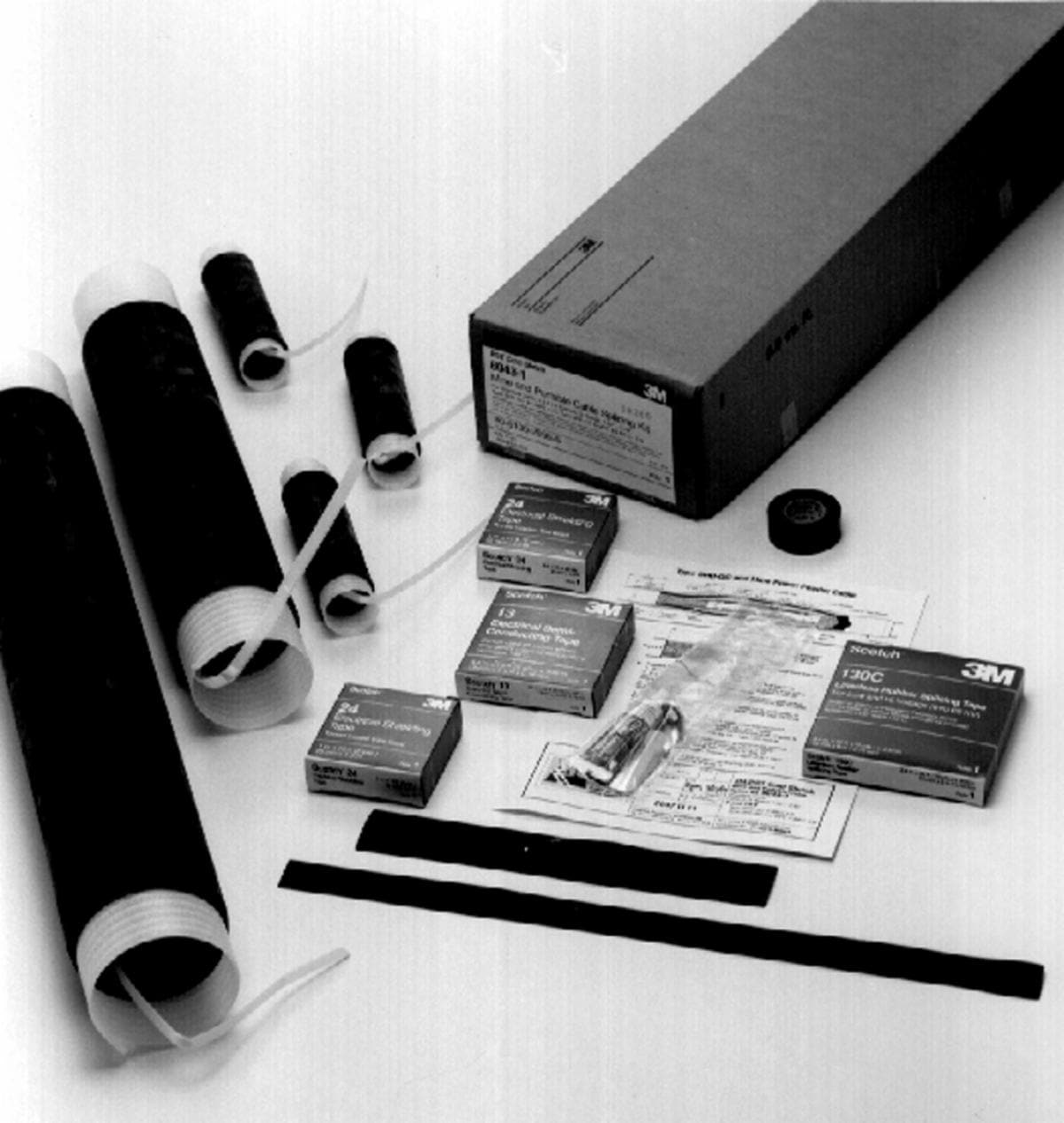

3M™ Cold Shrink Mine and Portable Splice Kit 8043-1, Max. Cable O.D. 1.80 in, 1/Case

  • 3M ID 7000031367
  • UPC 00054007156680

Perfect for splicing non-shielded cables

Rated for 5 to 8 kV applications

Includes Scotch® 24 electrical shielding tape, cold shrink filler tube, jacket tube, Scotch 13 electrical semi-conducting tape and more

View more details
Frequently viewed resources
PDF (1) Copy 26Safety Data Sheet (PDF)

Details

Highlights
  • Perfect for splicing non-shielded cables
  • Rated for 5 to 8 kV applications
  • Includes Scotch® 24 electrical shielding tape, cold shrink filler tube, jacket tube, Scotch 13 electrical semi-conducting tape and more
  • ABS Certified and RoHS 2011/65/EU Compliant

For 5 kV and 8 kV Cable, Types SHD-GC, MP and MP-GC. The 8043-1 Kit can be installed without the use of heat or additional tools, and the cable returned to service immediately. 3M™ Cold Shrink Tubes, with the removable core, are designed for quick installation. Connectors are ordered separately. If regular power connectors are used, length cannot exceed • 25.4/• millimetres.

For 5 kV and 8 kV Cable, Types SHD-GC, MP and MP-GC, the 3M™ Cold Shrink Mine and Portable Splice 8043-1 Kit can be installed without the use of heat or additional tools, and the cable returned to service immediately. Connectors are ordered separately.

Typical Properties

Applications

Cable Connection

Brands

3M

Cable Type

Cable with rubber insulation

Halogen Free

No

Insulation Outer Diameter (metric)

45.7 mm

Material

EPDM Rubber

Maximum Recommended Voltage Rating

8

Minimum Recommended Voltage Rating

5 Kilovolt

Number of Conductors

3

Product Colour

Black

Shielding Type

Non-shielded

Splice Type

Inline

Units per Case

1.0

Voltage

5 kV, 8 kV

Voltage Application

Medium Voltage

Resources

Safety Data Sheets

Document Number: MSDS_3476843_AU_EN

(PDF)
