3M™ 1252 EMS Full-Range Marker Passive Blue Water
- 3M ID 7000057983
Details
Highlights
- Depth is 2.7 m
- Diameter is 381 mm and Thickness is 17 mm
- Doubles as a digging shield which helps eliminate costly dig ins
- Unlike surface markers such as stakes, flags or paint, the Full-Range Marker cannot be inadvertently moved or worn away by weather
- Frequency and colour coded helps to identify the specific utility
- All markers function without the need for an external power source
- Operating temperature spans from -20 to 50⁰C
- Easy to use
Provide an accurate , convenient , long lasting method of marking underground facilities. The marker has a range up to 2.4 metres from marker to locator.
The 1250 Full-Range Markers are used in the Telecommunications industry.
Typical Properties
| Application/Industry | Water |
| Brands | 3M™ |
| Burial Depth (Metric) | 2.4 Metre |
| EMS Caution Tape Finding Capability | N/A |
| Marker Depth | 8 feet (2.4m) |
| Marker Dimension (inch) | 15 inch Diameter x 0.65 inch Thick |
| Marker Type | Full Range |
| Product Colour | Blue |
| Programmable/Passive | Passive |
| Solution for | Access Network: FTTH/FTTB/CATV, Wireless Network: Backhaul, Access Network: xDSL, Longhaul/Metro Loop Network: Outdoor |
| Units per Case | 25.0 |
| Utility Type | Potable Water |
| Overall Diameter (Metric) | 38.1 cm |
| Overall Height (Metric) | 1.65 cm |
Resources

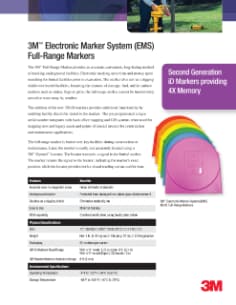

3M™ Electronic Marker System (EMS) Full Range Markers DSData Sheets
(PDF, 2MB)
