3M™ Cold Shrink Insulator 8427-6, 10/case
- Part Number 80610456164
- 3M Product Number 8427-6
- 3M ID 7000132443
- UPC 00054007099154
Details
Highlights
- Unique 3M Cold Shrink delivery system ensures fast, straightforward and consistent installation without compromising long term reliability
- No special tools, heat or site permits are required to install Cold Shrink, making it well suited for in-field applications
- Constant radial pressure for optimised environmental performance
- No flame required means there is less chance of damamging the cable material
- Seals tight, and retains its resiliency and pressure even after prolonged years of aging and exposure
- Fast, straightforward installation
- Environmental sealing for communication and other non-electrical applications

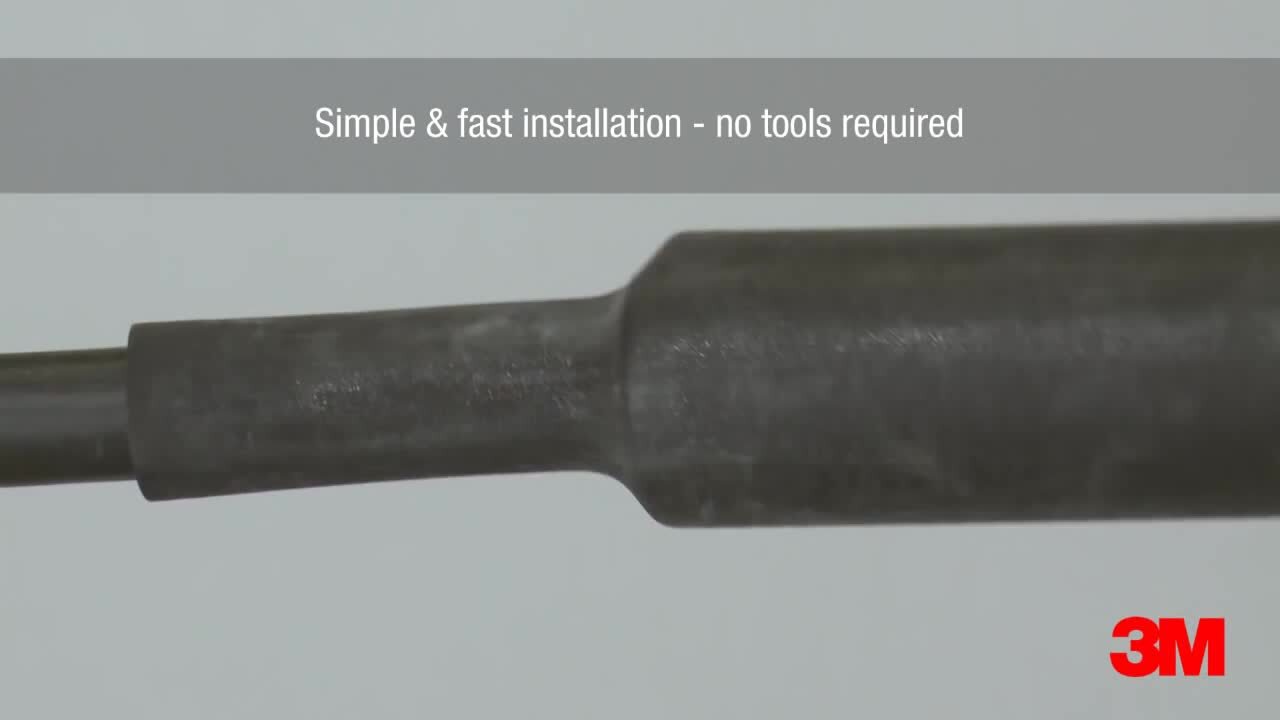

3M Cold Shrink Insulators offer a safe, easy to install method of insulating, sealing and protecting connectors, cable, hoses, fittings and conduit. The EPDM rubber insulators are supplied pre-stretched on a removable core. Removal of the core (unwinding) after positioning the splice allows the product to shrink into position forming a moisture tight seal.
The live memory action of the specially formulated material provides a permanent, durable environmental seal and insulation, with an operating temperature range of -40⁰C to 90⁰C.
Typical Properties
| Applications | Insulation, mechanical protection, repair |
| Brands | 3M™ |
| Cable Type | Non-Shieled, Solid Dielectric Power Cable |
| Case Quantity | 10 |
| Conductor Material | Copper, Aluminum |
| Halogen Free | No |
| Inner Diameter After Shrink (Metric) | 17.02 mm |
| Inner Diameter Before Shrink (Metric) | 35.1 mm |
| Material | EPDM Rubber |
| Maximum Connector Length (metric) | 50.8 mm |
| Maximum Operating Temperature (Celsius) | 90 ℃ |
| Minimum Operating Temperature (Celsius) | -40 ℃ |
| Model | Cold-shrink |
| Number of Conductors | 1 |
| Product Colour | Black |
| Product Type | Splice |
| Relaxed Tube Length (metric) | 152.4 mm |
| Shielding Type | Tape Shield, UniShield®, Wire Shield |
| Splice Type | Cold Shrink |
| Units per Case | 10.0 |
| Voltage | 1 kV |
| Voltage Application | Low Voltage |
| Overall Length (Metric) | 152 mm |
Resources
3M™ Cold Shrink Connector Insulators 8420 SeriesData Sheets
(PDF, 40KB)
