Electronic Marker System
3M Electronic Markers provide accurate identification of underground assets, helping to
reduce the risk of accidentally excavating other buried facilities. All markers function without
the need for an external power source. Their water resistant polyetheline shells are impervious
to minerals, chemicals and the temperature extremes normally found underground.
iD Markers can be programed to include customer-specific information about the asset,
such as the facility owner, conduit size, placement date, and other important details. This
information can be accessed using 3M locators with the iD function.
The 3M
™
Electronic Marker System (EMS) helps save utility companies time and money by enabling field crews to quickly pinpoint the location of buried
facilities including cable runs, splices and joints, valves, bends, road crossings, service drops and manholes. Using EMS Markers during construction,
installation and maintenance virtually eliminates the time consuming search for hard-to-locate facilities.

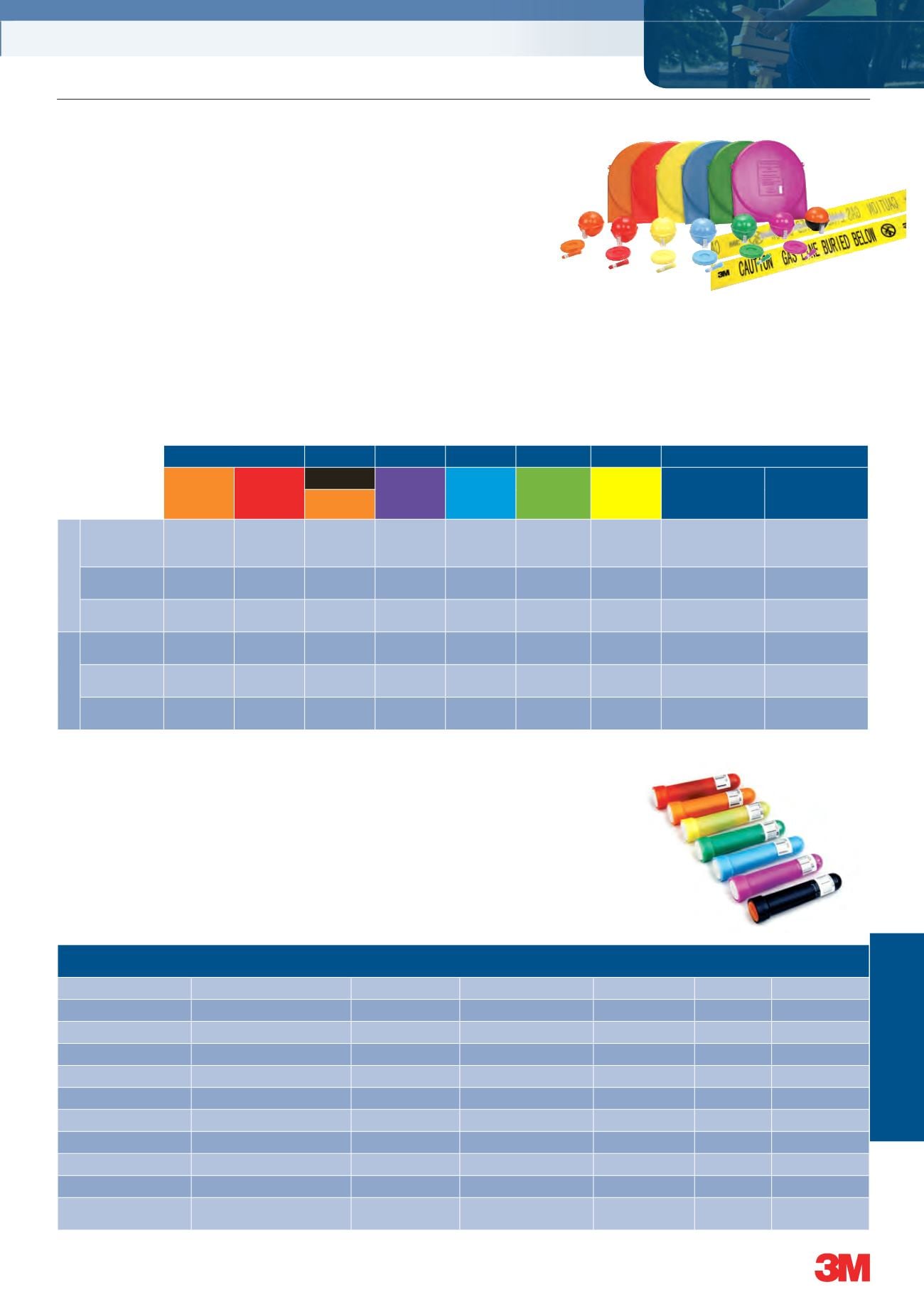

3M
™
Electronic Marker System Overview
Telephone Power
CATV
General
Water
Wastewater
Gas
3M iD and EMS Markers Read Range
Orange
Red
Black/
Purple
Blue
Green
Yellow
Using 7420-ANZ or
7550 or 7573 AU
models
Using 7550 or
7573 NZ models
Orange
iD (Programmable)
iD Ball Marker
1421-XR/ID 1422-XR/ID 1427-XR/ID 1428-XR/ID 1423-XR/ID 1424-XR/ID 1425-XR/ID
1.5 m
1.2 m (Tel, Gas, WW,
CATV) 1.0 m (Power,
Water)
iD Near-Surface
Marker
1432-XR/ID 1433-XR/ID
1438-XR/ID 1434-XR/ID 1435-XR/ID 1436-X/ID
0.9 m
0.6 m
iD Full-Range
Marker
1250-XR/ID 1251-XR/ID
1248-XR/ID 1252-XR/ID 1253-XR/ID 1254-XR/ID
2.4 m
2.0 m
Passive
EMS Ball
Marker
1401-XR 1402-XR 1407-XR 1408-XR 1403-XR 1404-XR 1405-XR
1.5 m
1.5 m
EMS Near-Sur-
face Marker
1432
1433
1434
1435
1436
0.6 m
0.6 m
EMS Full-Range
Marker
1250
1251
1252
1253
1254
2.4 m
2.4 m
*0.9 m for passive near-surface markers, 0.6 m for iD (programmable) near surface markers
3M
™
EMS Near-Surface Markers
3M EMS Near-Surface Markers provide an accurate, long lasting method of marking underground
facilities. The markers have a range of up to 1 metre from marker to locator and can be programmed
to include customer specific information (iD version).
Product
3M Order Code
Programmable/
Passive
Application
Colour
Depth Height x Diameter
1432
80610230312
Passive
Telephone
Orange
0.6 m 76 mm x 20 mm
1433
80610230379
Passive
Power
Red
0.6 m 76 mm x 20 mm
1434
80610230387
Passive
Water
Blue
0.6 m 76 mm x 20 mm
1435
80610230395
Passive
Wastewater
Green
0.6 m 76 mm x 20 mm
1436
80610230403
Passive
Gas
Yellow
0.6 m 76 mm x 20 mm
1432-XR/ID
80611321292
Programmable
Telephone
Orange
0.9 m 76 mm x 20 mm
1433-XR/ID
80611321300
Programmable
Power
Red
0.9 m 76 mm x 20 mm
1434-XR/ID
80611321318
Programmable
Water
Blue
0.9 m 76 mm x 20 mm
1435-XR/ID
80611321326
Programmable
Wastewater
Green
0.9 m 76 mm x 20 mm
1436-XR/ID
80611321334
Programmable
Gas
Yellow
0.9 m 76 mm x 20 mm
1438-XR/ID
80611321342
Programmable
General Purpose/
Recyclable Water
Purple
0.9 m 76 mm x 20 mm
