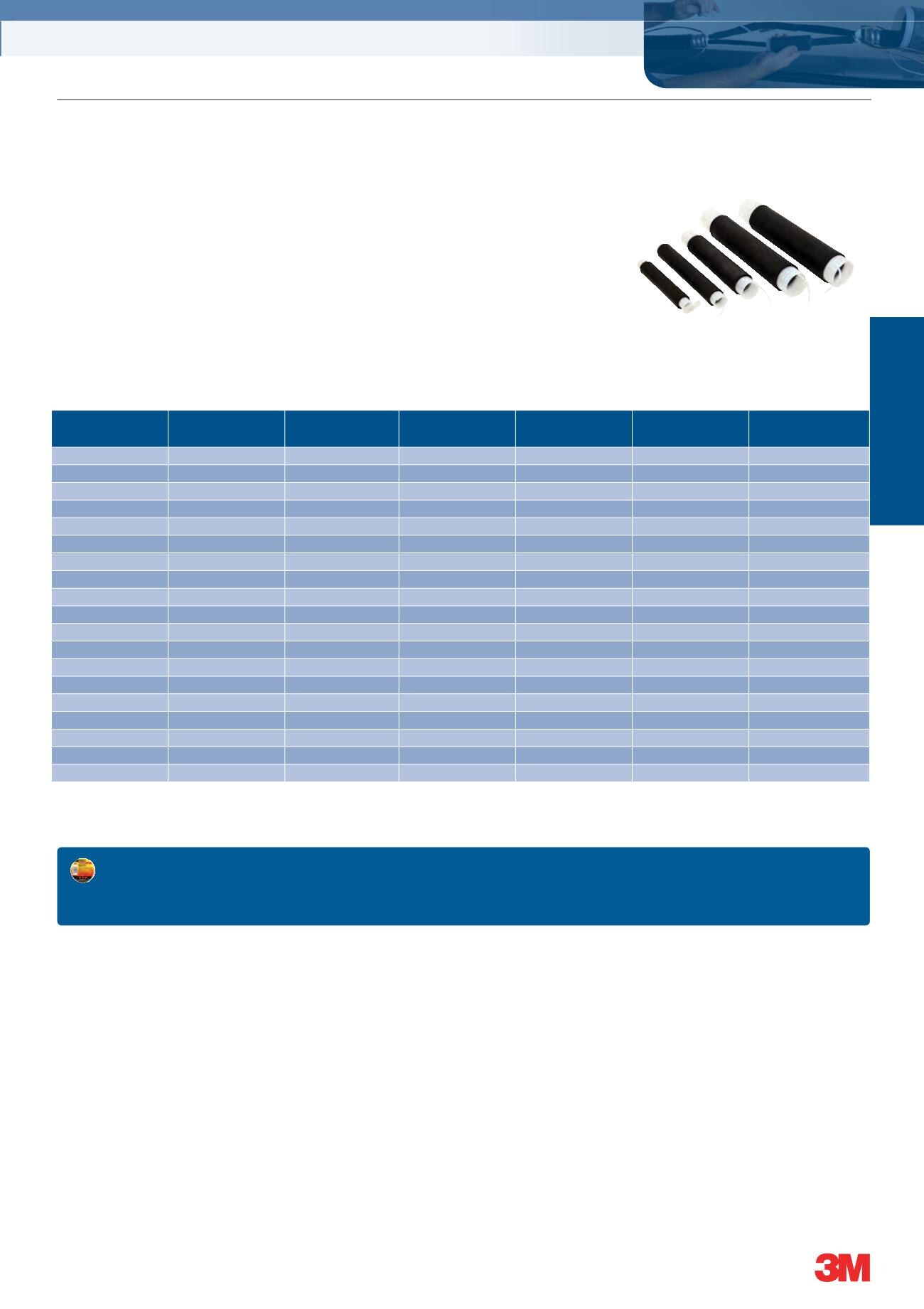

3M ANZ Electrical Catalogue 2015 Low Res - page 29

3M
™ Cold Shrink Low Voltage
Insulators and Joint Kits
24
Cold Shrink Low Voltage Insulators
3M™ Cold Shrink Connector Insulators 8420 and 8430 Series
3M Cold Shrink Connector Insulators 8420 and 8430 Series are designed using 3M’s unique cold shrink
delivery system. Products are supplied prestretched on a removable core for efficiency and ease of
installation. Removal of the core (unwinding) after positioning the splice allows the product to shrink into
position forming a moisture-tight seal. The live memory action of the specially formulated EPDM material
promotes a permanent, durable environmental seal and insulation, with a typical operating temperature range
from -40 to 90°C.
Important: Use cable insulation/jacket diameters and connector outer diameter for final sizing confirmation
Applications: Primary electrical insulation for all solid dielectric (rubber and plastic) insulated wire and
cable splicing rated to 1000 V
Good for repairs and environmental sealing for communication and other non-electrical
applications
Product 3M Order Code Typical Cable Size Minimum Cable
Diameter for Seal
Maximum Diameter
(Cable or Connector)
Maximum Connector
Length Relaxed Tube Length
8423-6 80610839484 14 - 16 mm² 7.8 mm 14 mm 51 mm 152 mm
8424-8** 80610921928 6 - 50 mm² 2.5 mm 21 mm 76 mm 203 mm
8425-8 80610921936 35 - 50 mm² 10.1 mm 21 mm 76 mm 203 mm
8426-9 80610927669 70 - 125 mm² 13.9 mm 30 mm 127 mm 229 mm
8426-11 80610927677 70 - 125 mm² 13.9 mm 30 mm 178 mm 279 mm
8427-6* 80610456164 - 16.8 mm 35 mm 51 mm 152 mm
8427-12 80610134035 125 - 200 mm² 16.8 mm 35 mm 203 mm 305 mm
8427-16 80610134043 125 - 200 mm² 16.8 mm 35 mm 305 mm 406 mm
8428-6* 80610456172 - 24.1 mm 49 mm 51 mm 152 mm
8428-8 80611230212 300 - 400 mm² 24.1 mm 49 mm 76 mm 203 mm
8428-12 80610154603 300 - 400 mm² 24.1 mm 49 mm 203 mm 305 mm
8428-18 80610134050 300 - 400 mm² 24.1 mm 49 mm 356 mm 457 mm
8429-6* 80610456180 - 32.2 mm 68 mm 51 mm 152 mm
8429-9* 80610456313 500 mm² 32.2 mm 68 mm 127 mm 229 mm
8429-12 80610921910 500 mm² 32.2 mm 68 mm 203 mm 305 mm
8429-15 80610970446 500 mm² 32.2 mm 68 mm 280 mm 381 mm
8429-18 80610134068 500 mm² 32.2 mm 68 mm 356 mm 457 mm
8430-9* 80610839492 630 - 1000 mm² 42.6 mm 94 mm 127 mm 229 mm
8430-18 80610921902 630 - 1000 mm² 42.6 mm 94 mm 356 mm 457 mm
*These sizes are not designed to be used as primary insulation.These shorter length tubes are for conduit sealing and breakouts.
**8424-8 contains range-extending adapters (without adapters, 8424–8 and 8425–8 products are identical).
Note: Insulation, connector and/or jacket can be overwrapped with Scotch® Rubber Mastic Tape 2228 to build up diameter if required.
For 8420 and 8430 Series Cold Shrink Tubes continuously exposed to high levels of UV radiation, 3M recommends overwrapping with
Scotch ® Super 33+ Vinyl Electrical Tape or Scotch® Self Fusing Silicone Rubber Tape 70. See pages 2 and 5.
Other sizes of cold shrink tubes are available on request - please contact 3M.
