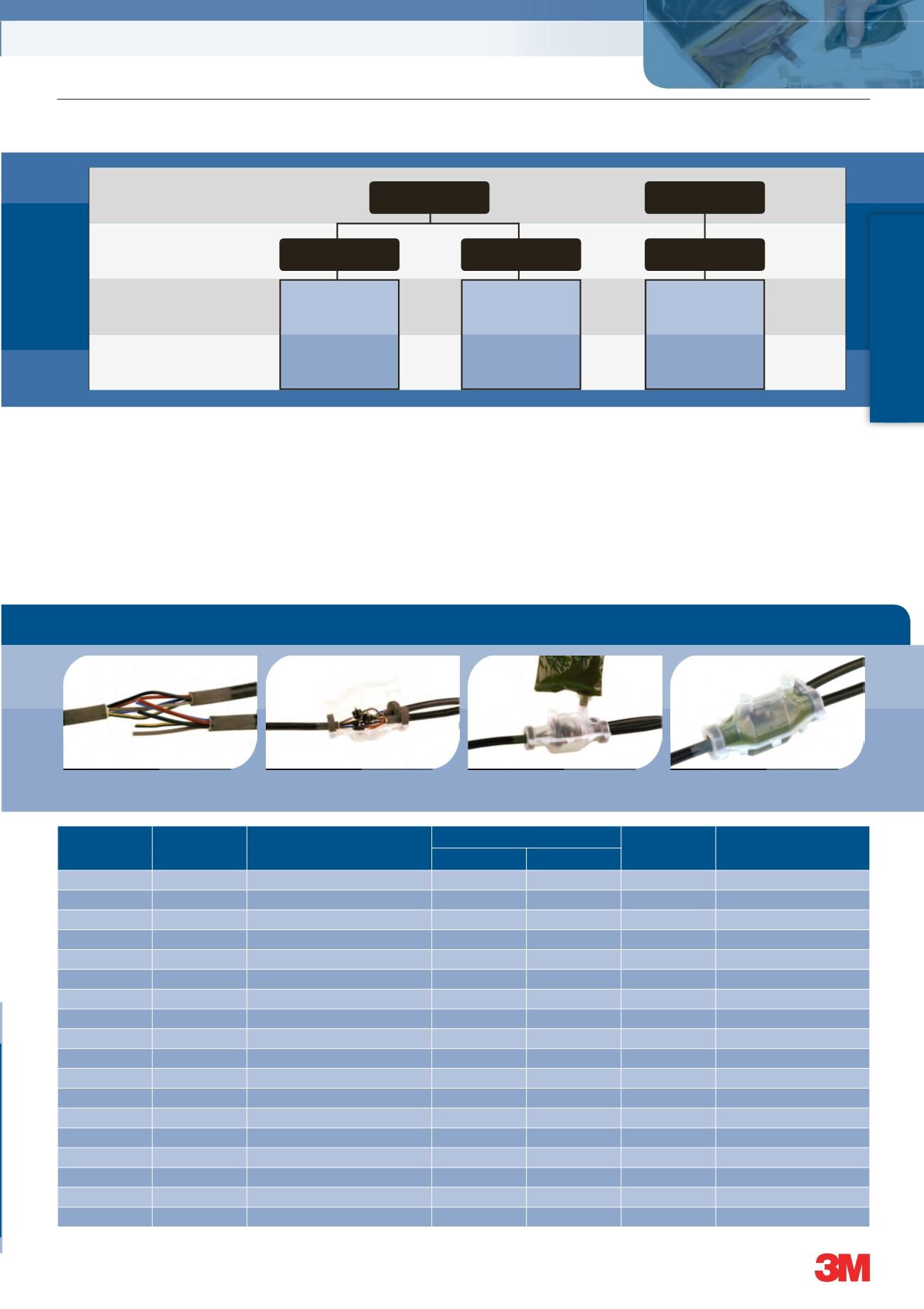

Resin Joint Kits - Low Voltage
3M
™
Scotchcast
™
Resin Cable Joint Kits
Cable Type
Joint Configuration
Non-Armoured
Scotchcast
™
Joint Kit
Premium Range
Scotchcast
™
Joint Kit
Hazardous Area Range
Armoured
Inline
Branch
92-NBB-U Series
92-NBB-Series (Y-branch)
92-NBC-Series (T-branch)
Inline
92-NBA Series
LVl-2 Series
LVl-3 Series
3M
™
Scotchcast Resin Cable
Joint Kits and Resins
The 3M
™
Scotchcast
™
“Express” one-part mould body is available in inline, T-branch and Y-branch (pictured) configurations.
Prepare and connect cables
Install mould
Mix and pour resin
Joint complete when resin has
completely filled the mould
3M
™
Scotchcast
™
Premium Resin Cable Joint Range
3M Scotchcast Premium Resin Cable Joints feature 3M
™
Scotchcast
™
Electrical Insulating Resin 40, which is a high quality two part polyurethane
compound designed for electrical insulation and mechanical protection. Scotchcast Premium Resin Cable Joints are available in a range of sizes and
configurations to suit inline, Y-branch, T-branch applications, and joints requiring cable armouring components. All products in this range utilise the
“express” one-part mould body, providing time and cost savings through extra fast set up.
Applications:
Indoor, outdoor, underground and submerged applications
Product
3M Order Code
Cable Type
Cable Diameter
Joint
Configuration
Mould Body
Main
Branch
92-NBA0
KE235117568
Non-armoured
6 - 16 mm
Inline
Express one-part
92-NBA1
KE235117576
Non-armoured
10 - 22 mm
Inline
Express one-part
92-NBA2
KE235117584
Non-armoured
12 - 25 mm
Inline
Express one-part
92-NBA3
KE235117592
Non-armoured
13 - 32 mm
Inline
Express one-part
92-NBA4
KE235117600
Non-armoured
18 - 36 mm
Inline
Express one-part
92-NBA5
KE235117618
Non-armoured
19 - 45 mm
Inline
Express one-part
92-NBA6
KE235117626
Non-armoured
27 - 54 mm
Inline
Express one-part
92-NBA7
KE235117634
Non-armoured
29 - 64 mm
Inline
Express one-part
92-NBB0
KE235119358
Non-armoured
8 - 19 mm
8 - 19 mm Branch (Y Config)
Express one-part
92-NBB1
KE235119366
Non-armoured
11 - 25 mm 11 - 25 mm Branch (Y Config)
Express one-part
92-NBB2
KE235119374
Non-armoured
16 - 35 mm 16 - 35 mm Branch (Y Config)
Express one-part
92-NBC2
KE235119408
Non-armoured
16 - 35 mm 16 - 35 mm Branch (T Config)
Express one-part
LVI-2/2-C*
KE235112288
Armoured
12 - 25 mm
Inline
Express one-part
LVI-2/3-C*
KE235112296
Armoured
13 - 32 mm
Inline
Express one-part
LVI-2/4
KE235112320
Armoured
18 - 36 mm
Inline
Express one-part
LVI-2/5
KE235112338
Armoured
19 - 45 mm
Inline
Express one-part
LVI-2/6
KE235112346
Armoured
27 - 54 mm
Inline
Express one-part
LVI-2/7
KE235112353
Armoured
29 - 64 mm
Inline
Express one-part
*Connectors (crimp) included
