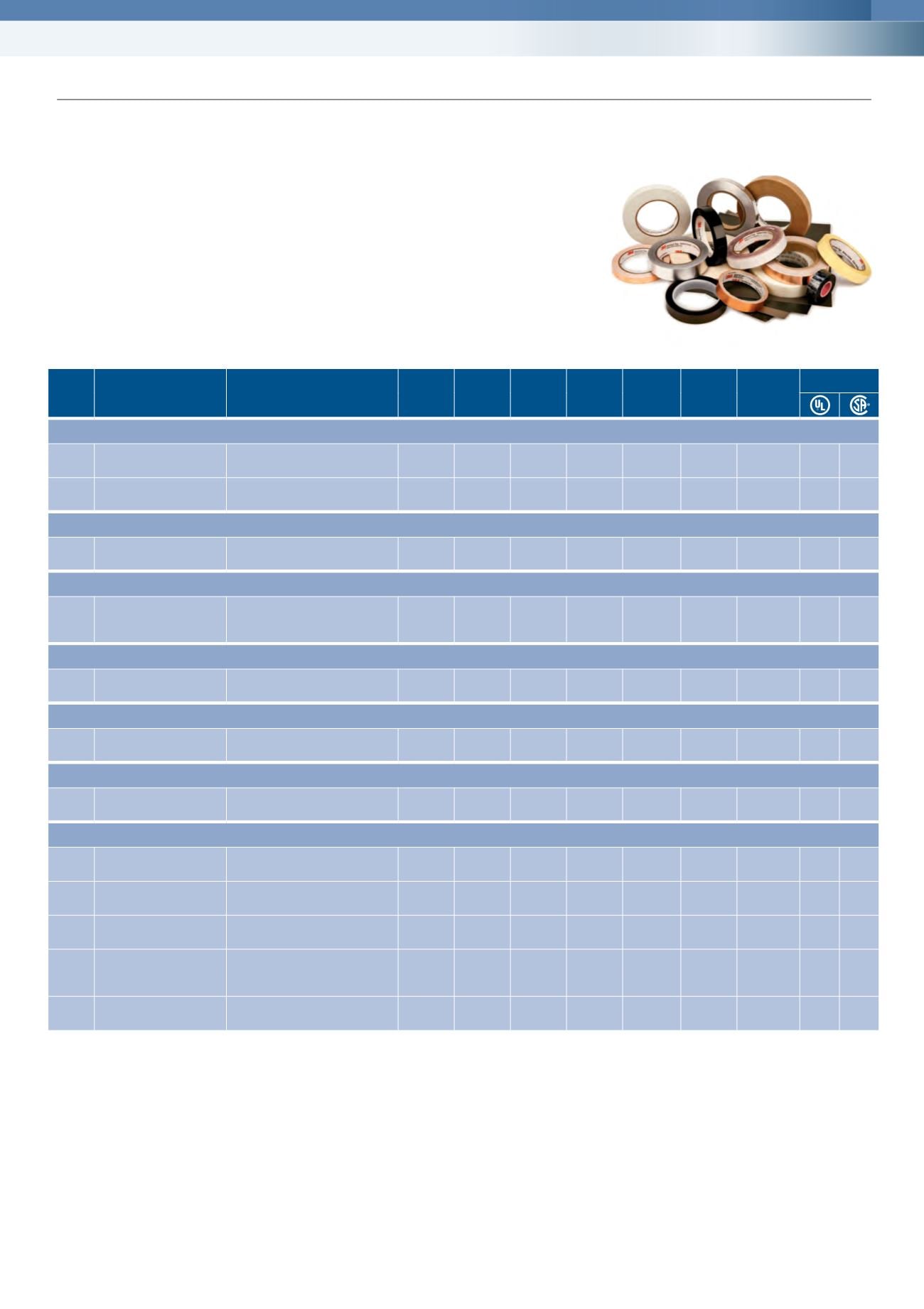

Insulating and Conductive (OEM) Tapes
3M
™
Insulating and Conductive Tapes
3M Insulating and Conductive Tapes are made from a broad range of backings and adhesives to
meet the uniquely demanding requirements of different applications and environments. Extensive
quality control and testing, combined with accurate process controls, are just part of the reason that
3M consistently provides high quality products.
These tapes are typically available from 3M converters in standard and custom sizes. Some tapes
are available in slit sizes from 3M. Please contact your 3M representative for more details.
Product
Product
Description
Features
Total
Thickness
Operating
Temperature
UL Flame
retardant
Dielectric
Breakdown
Insulation
Resistance
Breaking
Strength
Adhesion
to Steel
Agency Approvals
Glass Cloth Electrical Tapes
27
Scotch
®
Glass Cloth Electrical
Tape 27
High-performance glass cloth tape that is
tough and conformable.White
0.18 mm 150°C
3000 V 48 x 10
3
MΩ 25.2 kN/m 33 N/100 mm
ü ü
69
Scotch
®
Glass Cloth Electrical
Tape 69
High-temperature (200°C) glass cloth tape.
UL 510 flame retardant. Printable.White
0.18 mm 200°C
Yes
3000 V 48 x 10
3
MΩ 31.4 kN/m 44 N/100 mm
ü ü
Filament Reinforced Paper Electrical Tape
1076
3M
™
Paper Backed Filament
Electrical Filament Tape 1076
Paper/glass filament backing designed for
oil-filled transformer applications
0.25mm 105°C
3500 V
48.1 kN/m 44 N/100 mm
Glass Fibre Reinforced Polyester Film Electrical Tape
1039
3M
™
Glass Fibre Reinforced
Polyester Film Electrical Tape
1039
Solvent-resistant filament tape with
pressure sensitive acrylic adhesive
0.18 mm 130°C
5500 V 1 x 10
5
MΩ 48.1 kN/m 38 N/100 mm
ü
Acetate Cloth Electrical Tape
28
3M
™
Acetate Cloth Electrical
Tape 28
Thermosetting Rubber adhesive.
Printable.White
0.20 mm 105°C
2500 V 20 x 10
3
MΩ 7 kN/m 44 N/100 mm
Crepe Paper Electrical Tape
16
3M
™
Crepe Paper Electrical
Tape 16
Paper tape with aggressive rubber resin
adhesive. Coil cover on bobbin-wound coils
0.23 mm 105°C
2500 V >1 x 10
6
MΩ 4.4 kN/m 55 N/100 mm
Epoxy Film Electrical Tape
Super 20
3M
™
Super 20 Restricting
Tape White
Thick double sided epoxy for higher
temperature and dielectric strength
0.13 mm 155°C
Yes
8000 V >1 x 10
6
MΩ 7.9 kN/m 33 N/100 mm
ü ü
Polyester Film Electrical Tape
5
3M
™
Polyester Film Electrical
Tape 5
General purpose polyester tape with acrylic
adhesive. 0.025 mm film. Clear
0.06 mm 130°C
5500 V >1 x 10
6
MΩ 4.4 kN/m 38 N/100 mm
ü ü
1318-1
3M
™
Polyester Film Electrical
Tape 1318-1
Acrylic adhesive. 0.025 mm film.
Printable. Black or White
0.06 mm 130°C
5500 V >1 x 10
6
MΩ 4.4 kN/m 33 N/100 mm
ü ü
1350F-1
3M
™
Polyester Film Electrical
Tape 1350F-1
Acrylic adhesive. 0.025 mm film.
UL510 flame retardant.Yellow
0.06 mm 130°C
Yes
5500 V >1 x 10
6
MΩ 4.4 kN/m 33 N/100 mm
ü ü
56
3M
™
Polyester Film Electrical
Tape 56
General purpose polyester tape with
thermosetting rubber adhesive.
0.025 mm film.Yellow
0.06 mm 130°C
5500 V >1 x 10
6
MΩ 4.4 kN/m 55 N/100 mm
ü ü
58
3M
™
Polyester Film Electrical
Tape 58
Thicker, higher dielectric.Thermosetting
rubber adhesive. 0.05 mm film. Clear
0.08 mm 130°C
7000 V >1 x 10
6
MΩ 8.8 kN/m 65 N/100 mm
ü ü
